Product Details

Hellvape Trishul V2 Semi-Mech Mod

The combined shipping cost will be calculated automatically by the system after you choose the shipping destination in the checkout step.


Hellvape Trishul V2 Semi-Mech Mod is the latest version of the Hellvape Trishul series. It is a high-end hybrid Semi-Mech Mod with an all-metal body, exquisite workmanship, and a new HELLCHIP chipset. Trishul V2 Semi-Mech Mod is made of high-grade brass and copper, with an ergonomic cylindrical chassis, mirror polishing process, and relief decoration. The top diameter is 26mm, the bottom diameter is 27mm, and the ends are gradually reduced to 25mm toward the middle. Trishul V2 Semi-Mech Mod is powered by a single 21700, 20700, or 18650 battery, 18650 battery adapter included. It only works with the battery installed (+) Positive up. Coming with a silicon gasket, it is compatible with different batteries automatically. Trishul V2 Semi-Mech Mod has a hybrid 510 connector. On a hybrid 510 connection, you just have a hole, so that the positive pin of your atomizer makes direct contact with the positive end of the battery. On the top plate, you have three battery venting holes and cutouts.

Observe the inside of the tube, you can see the chip assembly. Located above the battery tube. The HELLCHIP provides safety protections and the lowest loss. Thanks to an integrated HELLCHIP inside the Trishul V2 Semi-Mech Mod, the vape provides for premiere security & protection. Trishul V2 Semi-Mech Mod adopts an innovative magnet attraction button, equipped with a constant contact switch at the bottom, with dual N52 NdFeB black magnets, Silver-Plated Canted Coil Spring, and large copper contacts, providing a stable constant contact of the battery to provide impressive conductivity and provide comfortable ignition surroundings. A simple operation can realize the switch between mechanical and semi-mechanical to meet different needs.


• 27mm diameter tapers to 25mm

• Smart protection mode and full mech mode are available

• Semi-mech mod with internal chip for safety protection

• Innovative magnet attraction button design with comfortable use in a long term

• Strong and stable magnetism by powerful N52 NdFeB black magnet

• Automatic floating battery adjustment by a silicone ring

• Accepts single 21700, 20700, or 18650 battery

• 18650 battery adapter included

• Switch with built-in Canted Coil Spring for better conductivity

• Large copper contact with mirror polishing craft for better conductivity

Diameter: 27mm, tapers to 25mm
Height: 99.9mm
Material: Brass, Copper
Weight: 168g
Connector: Hybrid 510
Battery: Single 21700/ 20700/ 18650 Battery (Not INcluded)
Resistance Range: 0.1-2.5ohm
Voltage Range: 3.2V - 4.2V
Contact Material: Copper
Switching Mode: Magnet Attraction
Protections: Short-circuit/Low Voltage/Over-temperature/10 Seconds Cut Off
Colors: Copper Black, Copper, Brass

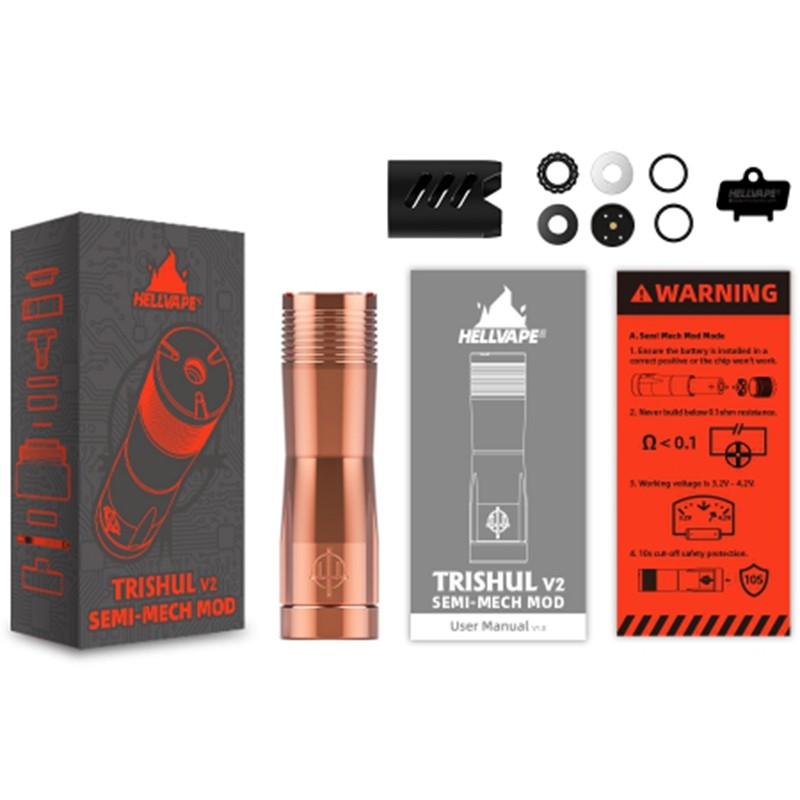

1x Trishul V2 Semi-Mech Mod

1x Black Magnet

1x Metal Gasket

1x Warning Card

1x Full Mech Mod Adapter

2x O-rings

1x Plastic Key

1x 18650 Battery Adapter

1x Silicone Gasket

1x User Manual

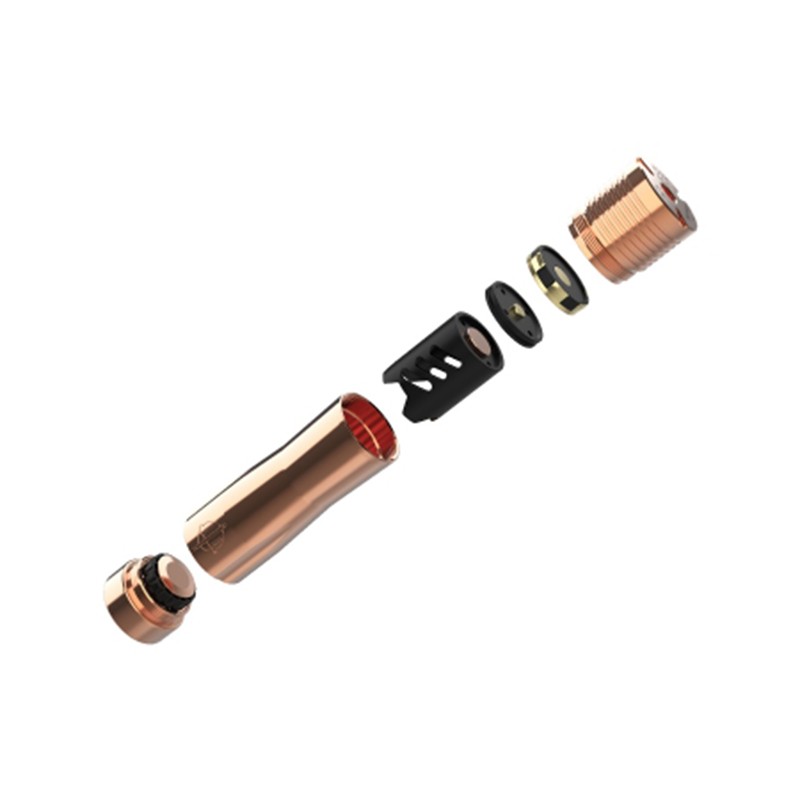

Trishul V2 Semi-Mech Mod Exploded View

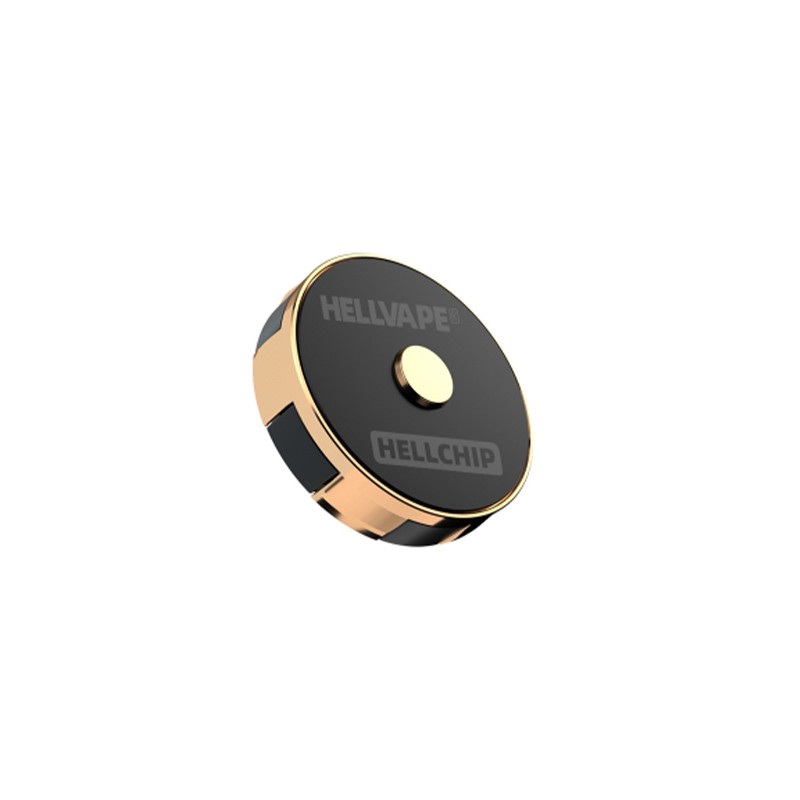

Trishul V2 Semi-Mech Mod Chip Protection

Trishul V2 Semi-Mech Mod Compatible Battery

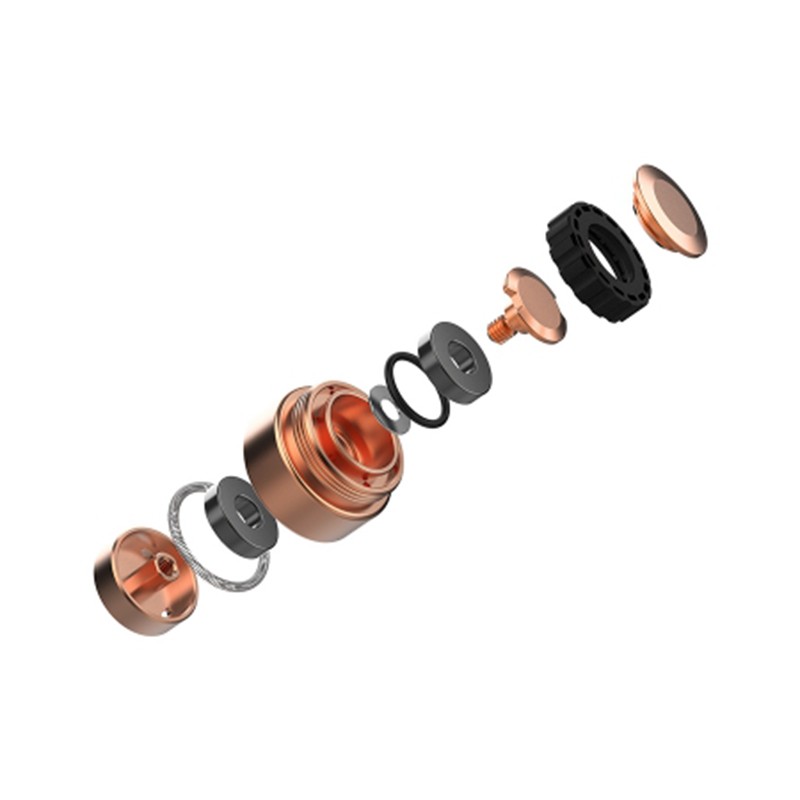

Trishul V2 Semi-Mech Mod Attraction Button Components

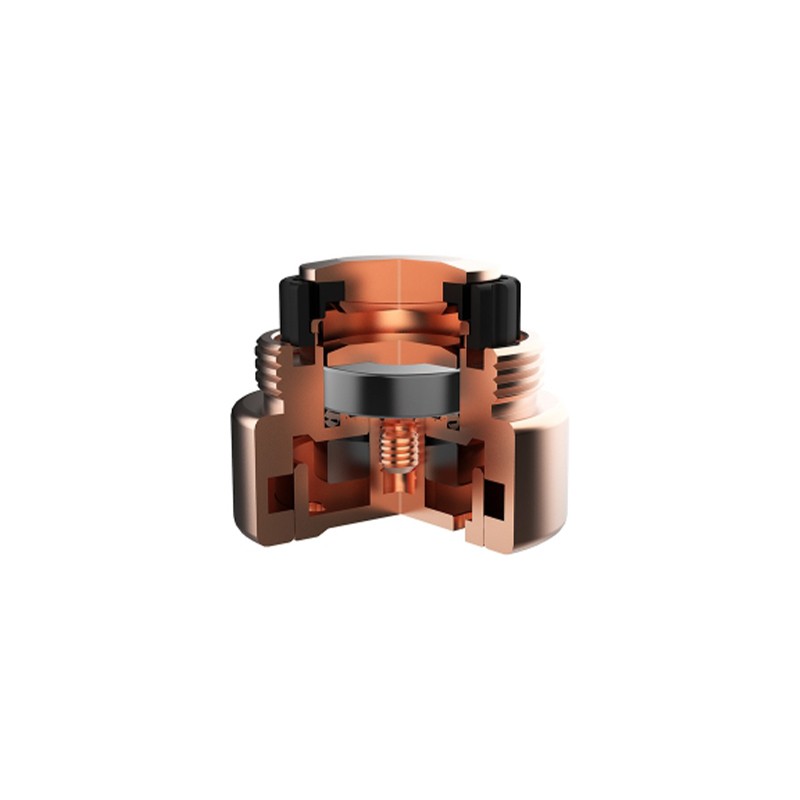

Trishul V2 Semi-Mech Mod Large Copper Contact

Trishul V2 Semi-Mech Mod Canted Coil Spring

Trishul V2 Semi-Mech Mod Magnet


Attention: As the manufacturer needs the serial number to provide a replacement, we highly recommend you keep the original packing box or take picture of the code before discarding it. Thank you!
